Short answer: no.
This is one of the most common questions, and the assumption behind it is understandable. People see a full sheet of plywood backing a French cleat wall and figure it must be structural, that the cleats need something solid behind them to hold weight. They don’t. Cleats screwed directly into your studs are plenty strong. The backerboard is optional, and for most people it’s not worth the cost.
But “not necessary” isn’t the same as “never useful.” There’s one specific case where a backerboard earns its keep, and it’s worth understanding so you can decide for yourself.
Why people think they need one
A French cleat is just a beveled strip of plywood screwed into your studs at a 45-degree angle, the wall cleat. The matching tool cleat on the back of your toolholder drops over it and locks in place. The studs carry the load. As long as your wall cleats are properly fastened (a couple of screws per stud), the holding power is far beyond what any reasonable toolholder will ever ask of it.
A backerboard (a full sheet of plywood mounted to the studs, with cleats then attached to the plywood) doesn’t add meaningful strength to this. It’s mostly there for looks, or because someone followed a build tutorial that included one. If your goal is storage, you can skip it entirely and mount cleats straight to the studs.
The one case where a backerboard actually helps
Here’s where it gets interesting, and it ties directly into the physics of how a toolholder stays put on the wall.
Every French cleat toolholder is fighting a tip-over battle. The load sits some distance out from the wall, and gravity wants to rotate the whole thing forward, pivoting about the lowest cleat the toolholder still bears on, its last contact. What resists that is the toolholder’s supported height: how far it bears down the wall, from the tool cleat at the top to that last contact.
The rule of thumb to design around is 1:1: that supported height should roughly equal the horizontal reach out to your load’s center of mass. Get those in balance and the toolholder is stable. Push the load farther out without extending the back down, and you start relying on friction alone to resist rotation, a much weaker, slowly-creeping bet.

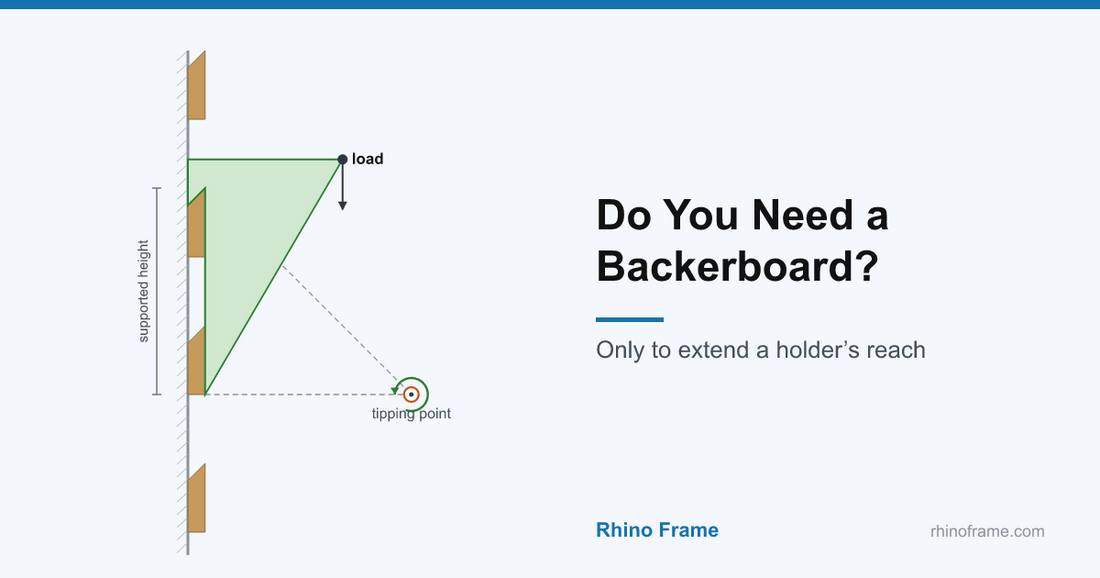

That’s the lever a backerboard gives you. Slide the supported height below and watch the tipping point move out, once it passes the load, the toolholder can’t tip:
So here’s the trick: some toolholders are built with a rest, or foot, on the bottom edge that bears against a backerboard. That rest extends the effective supported height. More supported height means you can afford more reach out front while staying inside the 1:1 rule. The backerboard gives that bottom rest something continuous to push against, so you can build toolholders that reach farther off the wall without tipping.
So if you’re designing toolholders with built-in rests to extend their reach, a backerboard is the surface those rests need. That’s the real reason to install one.
The shortcut: rest against the cleat below
If you’ve got a large wall packed with cleats (rows of them spaced evenly up the wall), you usually don’t need a backerboard for this at all. You can rest the bottom of your toolholder against the wall cleat directly below it instead.
The cleat below does the same job the backerboard would: it gives the bottom of your toolholder something solid to bear against, extending the supported height and resisting tip-over. On a densely cleated wall, that cleat is right there, already mounted, already strong. No extra sheet of plywood required.
This is one of the quiet advantages of a full cleat wall over a single cleat strip. The more cleats you have, the more your toolholders can lean on each other’s hardware for stability, and the less you need to design rests for the wall surface itself.
So what should you do?
It comes down to one question: are you designing toolholders with bottom rests to extend their reach?
- If no, and most people aren’t, skip the backerboard. Mount your cleats straight to the studs and you’re done. It’s cheaper and faster.
- If yes, and your wall is densely cleated, let your toolholders rest against the cleat below. You get the stability benefit with zero added material.
- If yes, and you’ve got isolated cleats with big gaps, a backerboard gives your rests a continuous surface to bear against, and that’s a legitimate reason to install one.
For the vast majority of shops, a French cleat wall needs nothing behind it but studs. Build it light, build it simple, and add a backerboard only if your toolholder design actually calls for one. Planning the wall itself? Our free French Cleat Designer sizes the cleats, spacing and plywood for you, backer-board option included.
