A French cleat looks almost too simple to take seriously: a board ripped at 45° screws to the wall, a matching strip on the back of a toolholder hooks over it, and somehow a heavy load just… stays there. No latch, no fastener. So why doesn’t it tip off the moment you hang something that sticks out? The answer is a tidy little piece of statics, and once you see it you’ll size every toolholder by eye.
How a toolholder actually hangs
A toolholder touches the wall in only two meaningful places. At the top, its tool cleat hooks over the wall cleat. That 45° bevel is the one real interlock. Everywhere below, the flat back of the toolholder simply leans on the wall cleats it crosses; the lowest one it still touches we’ll call the last contact. That’s it: one cleat hooked at the top, one lean point at the bottom, and a load hanging out front.

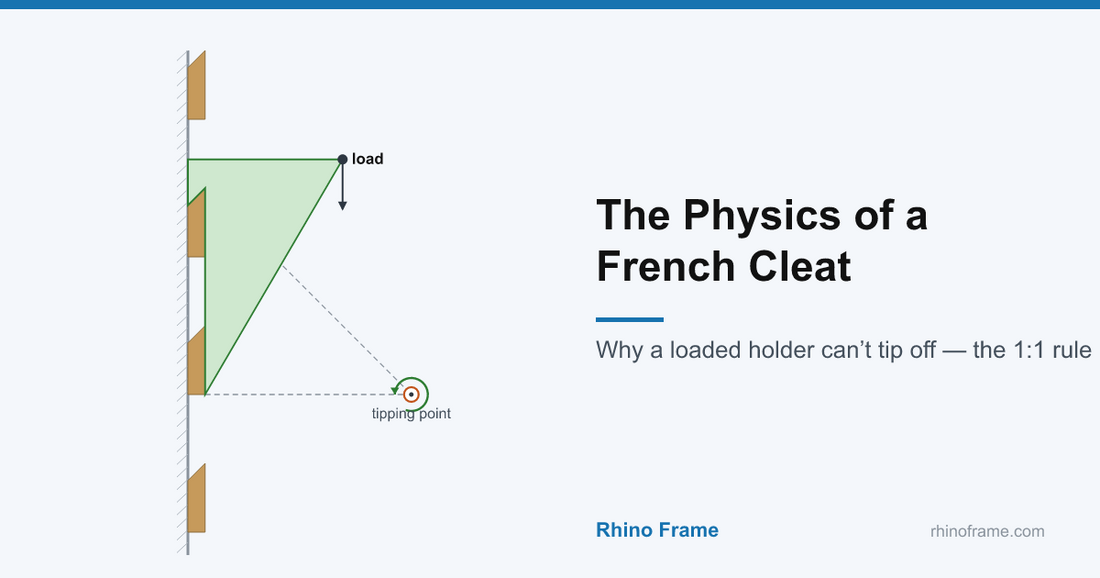

The free-body diagram
Three forces act on the toolholder. The load pulls straight down, out at its reach from the wall. The tool cleat pushes back along a line square to its 45° bevel, up and toward the wall. And the wall cleat at the last contact simply pushes the toolholder away from the wall. Balance those three and it hangs happily.
Notice the tool cleat can only push perpendicular to its bevel, and it can only ever push (a cleat can’t pull). That one fact (a 45° contact that can only push) is where the famous “1:1” rule comes from.
Find the pivot: the instant center
To ask “will it tip?” we ask “if it started to move, what would it rotate about?” That point is the instantaneous center of rotation, and you can find it by hand from the two constraints:
- The last contact can only lift straight up (it can’t push into the wall), so the pivot lies on the horizontal line through it.
- The tool cleat can only slide along its 45° bevel, so the pivot lies on the line through it that is perpendicular to that slide, another 45°.
Those two lines cross out in space, level with the last contact and a horizontal distance equal to the supported height away. Push the reach past that point and the toolholder rotates straight off about it:
Here is the whole rule in one sentence: it tips only if the load’s weight line falls beyond the tipping point. The pivot sits one supported-height out, so as long as the load’s reach is less than the height the toolholder is supported over, the weight line lands inside the pivot and gravity actually rotates it the safe way, back into the wall. That’s the 1:1 rule: reach < supported height, and it can’t tip off, no matter how heavy the load.
The slow-sag warning sign
Push the reach past that 1:1 line and, in theory, the toolholder should pop straight off. In practice it usually doesn’t. Friction at the tool-cleat bevel grabs it and holds it right where it is, immediately. But friction is a holding force, not a lock: every time the wall takes a knock, or you pull one load off and hang another, the grip slips for an instant and the toolholder creeps down a hair.
So a toolholder that has slowly crept a few degrees out of true is the tell-tale: it was never geometrically stable. It has been living on friction, and the creep is that friction gradually losing. It might hang on for years, or let go the day of one bump too many. So how much is that friction really worth?
What friction does to the tipping point
The two faces wedged together at the tool cleat are cut plywood edges, the rough, ply-layered faces left by the 45° rip. Friction there resists the cleat sliding up its bevel, and in statics that does something elegant: it lets the contact reaction tilt away from square by the friction angle, φ = arctan μ. Tilting the reaction by φ is geometrically identical to making the bevel steeper by φ, which slides the tipping point farther out. Here is the free-body diagram with that friction added; drag μ and watch the real pivot march past the load:
The on-friction limit works out to supported height × tan(45° + arctan μ) = supported height × (1 + μ) / (1 − μ). Cut plywood edge on cut plywood edge is rough, a reasonable μ ≈ 0.3 (it drifts roughly 0.2–0.5 with the species, the glue lines, dust and finish). At μ = 0.3 friction roughly doubles the reach before it lets go; by μ = 0.5 it triples it. Tempting, but that number is the least trustworthy thing in the whole problem. Wax, paint, sawdust, humidity swings and a little vibration all move it, and always the wrong way at the wrong time. So treat the friction as your safety margin, not your design basis: size to the frictionless 1:1 line, and let the cut-edge friction be the bonus that keeps them rock-solid.
Why 45°? The bevel sets the pivot
The 1:1 rule is really a 45° rule. Run the same instant-center construction at any bevel and the tipping point lands tan(bevel) supported-heights out from the cleat face. At 45° that’s exactly one (1:1). A steeper bevel throws the pivot farther out, more reach before it tips; a shallower one pulls it in. Drag the bevel and watch the pivot slide:
So why not cut everything at a steep 60° for the extra margin? Because the bevel earns its keep three ways at 45°: it’s the easiest tilt to set accurately, it’s symmetric so a single rip down a double-wide board yields two identical cleats, and it gives that clean 1:1 you can size against in your head. A steeper bevel also leaves a longer, more fragile feather edge that chips out. 45° is the engineer’s and the woodworker’s agreement, which is why every Rhino Frame cleat is cut there.
The takeaway
Keep a load’s reach from the wall under the height its toolholder is supported over, and a 45° French cleat physically cannot tip off, the geometry does the work and friction is just insurance. Want it sized for you? Our free French Cleat Designer lays out the cleat, the saw setup, the whole wall, and checks any toolholder against this exact rule.
