A french cleat wall is one of the best investments you can make in a garage or workshop. It's fully customizable, infinitely reconfigurable, and lets you store virtually any tool on the wall exactly where you need it. Nothing is fixed in place. You can move, swap, and add accessories at any time with no drilling and no patching.
This guide covers everything: materials, tools, cutting the 45-degree angles, mounting to studs, and what to hang on the wall once it's built.
What is a French Cleat?
A french cleat is a two-piece mounting system. Both pieces are cut with a 45-degree bevel along one long edge. One piece mounts to the wall with the angled edge facing up and outward. The other piece attaches to whatever you want to hang (a tool holder, a bin, a shelf) with the angled edge facing down and inward. The two angles interlock under gravity. The heavier the load, the tighter the connection.
The power of a french cleat wall comes from covering a large surface with evenly spaced cleat strips. Once the wall is up, accessories can hook anywhere along it. No measuring, no marking, no screws. Just hang and go.
What You'll Need
Materials
- 3/4" birch or cabinet-grade plywood — one 4'x8' sheet yields about 8-9 strips, enough to cover a roughly 4-foot-wide section floor to ceiling
- 2-1/2" or 3" coarse-thread wood screws for mounting to studs
- Wood glue (optional, for laminating accessories)
Tools
- Table saw (strongly preferred) or circular saw with a straightedge guide
- Stud finder
- Level — a 4-foot level is ideal
- Drill/driver
- Tape measure
- Safety glasses and hearing protection
Choosing Your Plywood
3/4" plywood is the most common thickness for French cleats and will give you the most options down the road. Birch plywood is the standard choice: it's flat, stable, machines cleanly, and the void-free core holds screws well.
Construction plywood (the rough stuff at the lumber yard) will work in a pinch, but it's often not perfectly flat. Warped plywood means your cleats won't sit flush against the wall, and accessories will rock. Spending a few extra dollars on cabinet-grade material is worth it.
How much do you need? One 4'x8' sheet, ripped into 3.5"-wide strips at 45 degrees, covers about a 4-foot-wide section of wall from 2 feet off the ground to about 6.5 feet. For a full 8-foot or 16-foot wall, plan on 2-4 sheets minimum.
Step 1: Locate Your Studs and Plan the Layout
Run a stud finder across the entire section of wall you're covering. Mark every stud at the top with painter's tape. You'll reference these marks constantly during installation.
Standard stud spacing is 16" on center in most residential construction. Older homes sometimes run 24". Either spacing works fine for a french cleat wall, but know what you have before you start cutting strips to length.
Decide on your coverage area. Most people run cleats from about 18-24" off the floor (above bench height or just above a workbench) up to 6.5-7 feet. Keeping the bottom edge accessible without crouching makes the wall more usable day-to-day.
Step 2: Rip the Cleat Strips
Set your table saw blade to exactly 45 degrees. Rip the plywood into strips. Common strip widths are between 3" and 4". The exact width matters less than consistency. Every strip needs to be the same width so the spacing stays uniform across the wall.
Each rip through the sheet produces two pieces with complementary bevels: one wall cleat and one accessory cleat. The wall cleat is the piece that stays mounted. The accessory cleat attaches to tool holders and bins.
No table saw? A circular saw with a straightedge clamped as a guide works. It's slower, but the cut doesn't need to be furniture-grade — it needs to be straight and consistent. Take your time on the setup and the cuts will follow.
Tip: If you're using a table saw, run the full 8-foot sheets through first to get uniform strips, then cross-cut them to your wall width. Long rips are much easier to control than trying to cut strips to length first.
Step 3: Mount the First Row
Start from the bottom of your coverage area, not the top. The angled edge of each wall cleat faces up and away from the wall — this is the lip that catches accessories.
Set the first strip against the wall and level it carefully. This row is your reference for everything above it. If it's off, every subsequent row compounds the error. Use a 4-foot level and take your time.
Drive screws through the flat face of the cleat into studs. Two screws per stud per strip. Don't fasten between studs — drywall anchors are not adequate for a loaded tool wall. Every screw needs to hit a stud.
Use 2-1/2" or 3" screws. Countersink the heads slightly so they sit flush or just below the surface — proud screw heads will prevent accessories from sitting flat.
Step 4: Work Your Way Up, Row by Row
The gap between strips is typically 3/4" to 1" — roughly equal to the thickness of one cleat. This gives accessories enough clearance to hook and unhook cleanly while keeping the wall dense enough that you can place things anywhere.
Use a scrap piece of 3/4" plywood as a spacer to keep the gap consistent between rows. Set it on top of the previous strip, rest the new strip against it, level, and screw. Remove the spacer and move up.
Once you've done the first two or three rows, the process goes quickly. Cover as much wall as you can — a full wall is dramatically more useful than a partial one, because accessories can go anywhere rather than being constrained to wherever the cleats happen to be.
Step 5: Finish the Edges (Optional)
Raw plywood is perfectly functional. If you want a cleaner look, a couple coats of white latex paint helps the wall read as a finished storage system and makes it easier to see what's hanging where. Sand the cut edges lightly before painting — plywood edges are rough and will absorb a lot of paint otherwise.
One caution: keep paint off the 45-degree bevel edges. Multiple thick coats on the mating surfaces can prevent accessories from seating properly. A light coat is fine; heavy buildup is not.

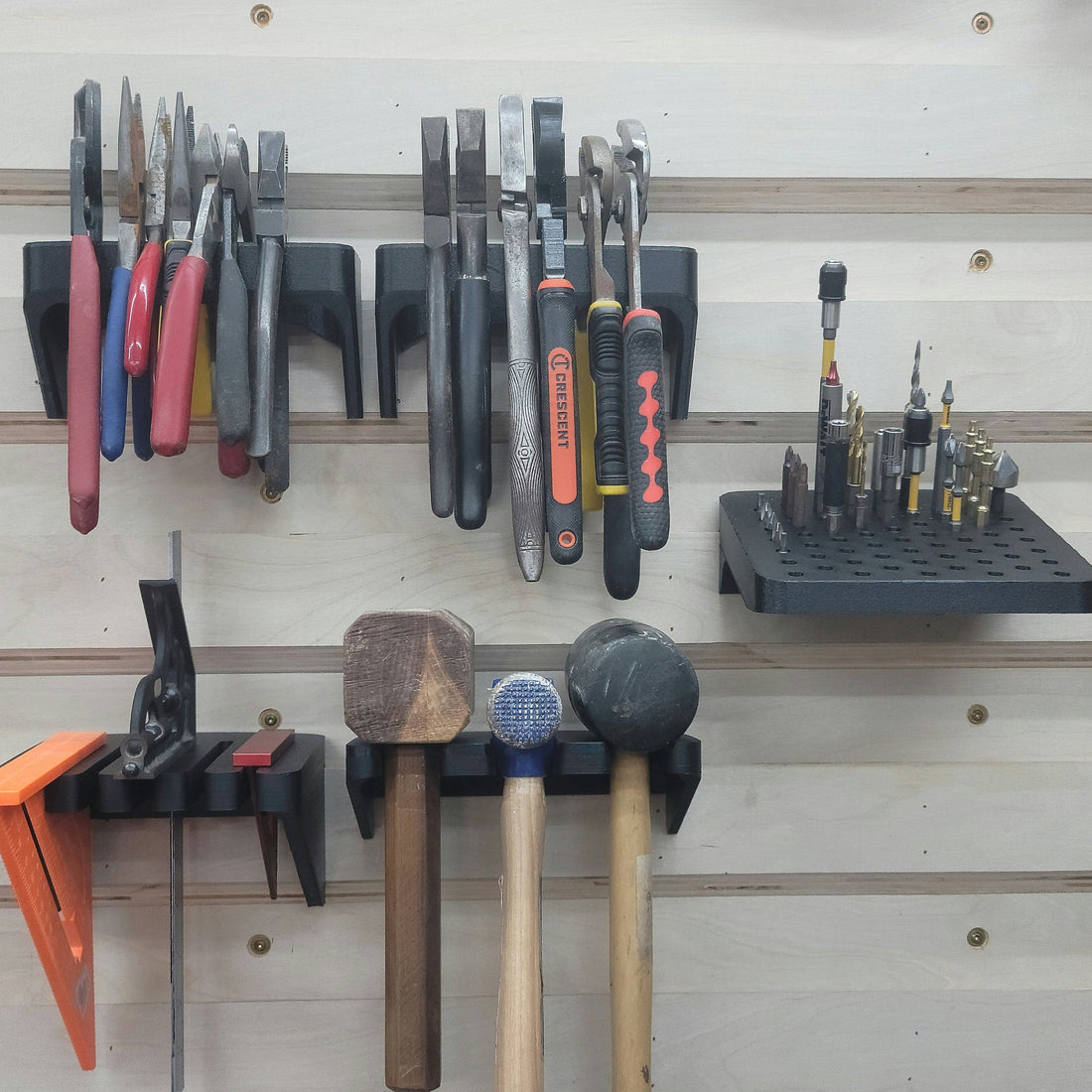

What to Hang on Your French Cleat Wall
Once the wall is up, any accessory with a matching 45-degree hook can mount to it in seconds. You can make your own from scrap plywood, or buy purpose-built accessories designed specifically for the system.
RhinoFrame makes a complete line of french cleat accessories, all 3D printed in the USA from high-strength PETG. Every piece mounts to any standard 3/4" french cleat wall and ships ready to hang — no assembly required.
- Bit racks — tiered holders for 1/4" hex driver bits and router bits, keeping every bit visible and accessible
- Power tool racks — hold cordless drills and 12V–20V tools; compatible with Dewalt, Milwaukee, and Makita
- Socket racks — wall-mount storage for 1/4" and 3/8" drive socket sets
- Screwdriver rack — 77 holes sized for large and small drivers
- Pliers racks, hammer racks, and chisel racks — purpose-built holders for your most-used hand tools
- Spray can racks and caulk tube racks — keep cans and tubes off your workbench and on the wall
- Bins and hardware bins — open-front storage for screws, fasteners, and small parts
- Steel hooks — heavy-duty hooks for cords, clamps, and straps
- French Cleat Nuts — 1/4"-20 threaded inserts that make almost any existing item cleat-compatible
If you want to get a functional wall going in one order, the French Cleat Starter Pack includes a bit rack, two pliers racks, a hammer rack, and a square rack — the essentials for getting your most-used hand tools off the bench and onto the wall.
Common Mistakes to Avoid
Mounting between studs. Drywall anchors feel solid until they don't. A loaded tool wall shifts and vibrates over time. Every screw needs a stud. If your studs are 24" apart, that's fine — just make sure you're hitting them.
Starting from the top. Always level your first row at the bottom and build upward. Errors at the bottom stay small. Errors at the top mean you're constantly fighting a wall that leans.
Not covering enough wall. The most common regret is not doing enough wall on the first build. Plywood is cheap. Cover as much as you can now. You'll fill it faster than you think.
How Long Does the Build Take?
A one-car garage wall (roughly 8 feet wide, 5 feet of coverage height) takes a competent DIYer about 3-4 hours solo, including cutting time. A full two-car garage bay is a full-day project. The plywood cuts take the longest. Once the strips are ready, mounting goes fast.
Is It Worth Building?
Without question. A french cleat wall is more flexible than pegboard, cheaper than slatwall, and stronger than both. It adapts as your tool collection changes. It costs a few sheets of plywood and an afternoon. And once it's built, it's there for the life of the space.
Build it once, organize it exactly the way you want, and rearrange it any time you need to without touching a drill.
